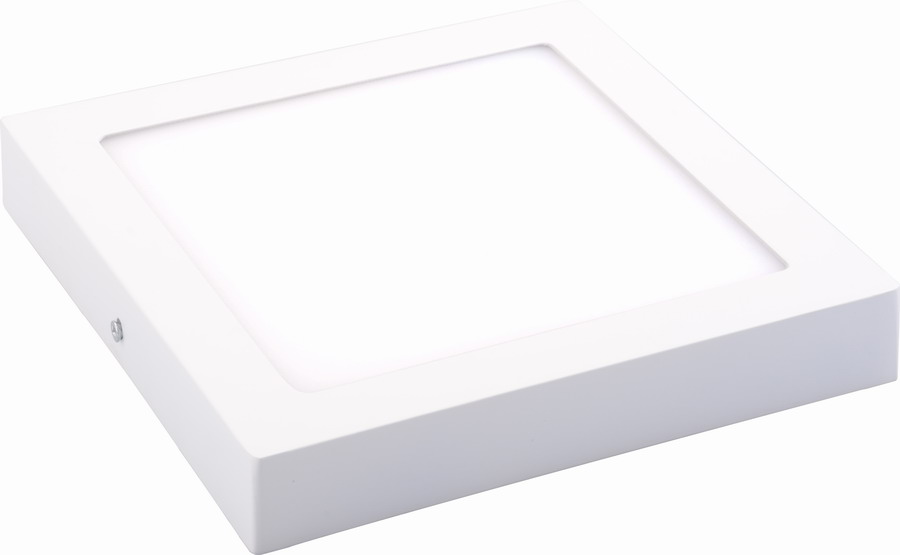

Down Light
Down Light
Aluminum frame with great heat dissipation
Super thin panels for embedding
Recessed, Surface Mounted are available.
Different UGR value, High efficiency, CCT switch, Dimmable are available
Warranty: 2 years
| Series | Model | Power | Voltage | lumen | PF | CRI | Dimension | Cut | Lifetime |
| RECESSED ROUND | ID-DL-ALR03 | 3W | AC100-240V | 120 | 0.5 | 70 | φ83*18mm | φ65mm | 15,000Hrs |
| ID-DL-ALR06 | 6W | AC100-240V | 300 | 0.5 | 70 | φ118*18mm | φ100mm | 15,000Hrs | |
| ID-DL-ALR09 | 9W | AC100-240V | 540 | 0.5 | 70 | φ145*18mm | φ130mm | 15,000Hrs | |
| ID-DL-ALR12 | 12W | AC100-240V | 720 | 0.5 | 70 | φ167*18mm | φ150mm | 15,000Hrs | |
| ID-DL-ALR15 | 15W | AC100-240V | 950 | 0.5 | 70 | φ187*18mm | φ170mm | 15,000Hrs | |
| ID-DL-ALR18 | 18W | AC100-240V | 1260 | 0.5 | 70 | φ221*18mm | φ200mm | 15,000Hrs | |
| ID-DL-ALR24 | 24W | AC100-240V | 1680 | 0.5 | 70 | φ296*18mm | φ275mm | 15,000Hrs | |
| RECESSED SQUARE | ID-DL-ALR03 | 3W | AC100-240V | 120 | 0.5 | 70 | 90*90*18mm | 70*70mm | 15,000Hrs |
| ID-DL-ALR06 | 6W | AC100-240V | 300 | 0.5 | 70 | 119*119*18mm | 100*100mm | 15,000Hrs | |
| ID-DL-ALR09 | 9W | AC100-240V | 540 | 0.5 | 70 | 144*144*18mm | 130*130mm | 15,000Hrs | |
| ID-DL-ALR12 | 12W | AC100-240V | 720 | 0.5 | 70 | 170*170*18mm | 150*150mm | 15,000Hrs | |
| ID-DL-ALR15 | 15W | AC100-240V | 950 | 0.5 | 70 | 194*194*18mm | 170*170mm | 15,000Hrs | |
| ID-DL-ALR18 | 18W | AC100-240V | 1260 | 0.5 | 70 | 219*219*18mm | 200*200mm | 15,000Hrs | |
| ID-DL-ALR24 | 24W | AC100-240V | 1680 | 0.5 | 70 | 297*297*18mm | 275*275mm | 15,000Hrs |
