Robust punching press die-cast aluminum construction
High light transmittance optical lens makes light transmittance can be 93%
Water-proof and handy connectors
Wall mounting, ground mounting , ceiling mounting with accessories
Model | Power | Voltage | Effecacy lm/w | lumen | PF | IP | Dimension | Lifetime |
OD-FL-KK010 | 10w | AC100-240V | 90 | 900 | 0.5 | 65 | 120*100*25mm | 15000Hrs |
OD-FL-KK020 | 20W | AC100-240V | 90 | 1800 | 0.9 | 65 | 120*100*25mm | 15000Hrs |
OD-FL-KK030 | 30W | AC100-240V | 90 | 2700 | 0.9 | 65 | 140*125*30mm | 15000Hrs |

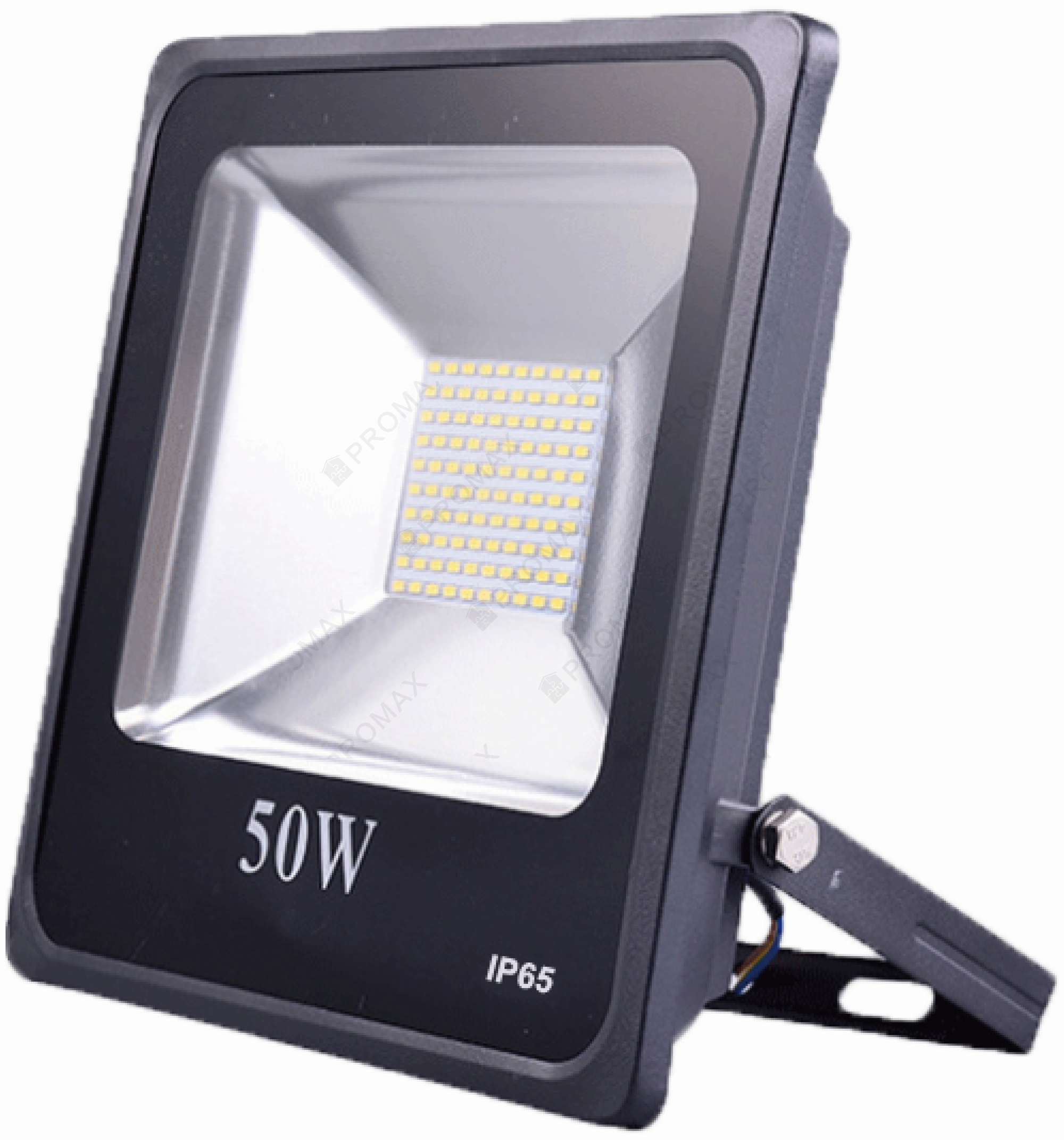

OD-FL-KK050 | 50W | AC100-240V | 90 | 4500 | 0.9 | 65 | 180*160*30mm | 15000Hrs |
OD-FL-KK100 | 100W | AC100-240V | 90 | 9000 | 0.9 | 65 | 240*220*35mm | 15000Hrs |
OD-FL-KK150 | 150W | AC100-240V | 90 | 14500 | 0.9 | 65 | 300*280*35mm | 15000Hrs |
OD-FL-KK200 | 200W | AC100-240V | 90 | 1800 | 0.9 | 65 | 350*320*38mm | 15000Hrs |
