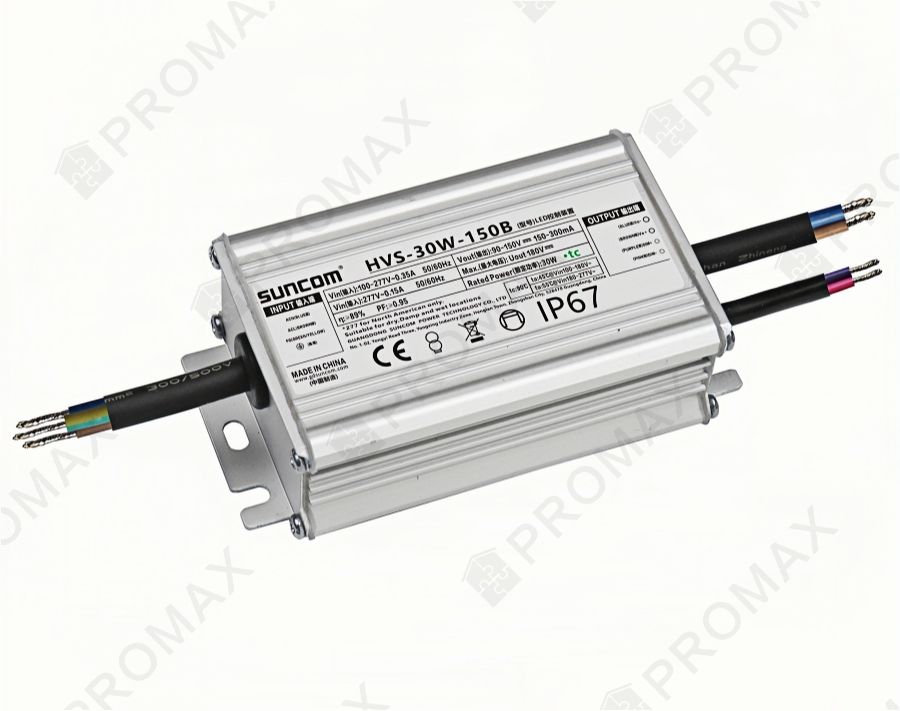

HVS DRIVER

*NON-ISOLATED FLICKER FREE LED STREET LIGHT DRIVER

*INPUT VOLTAGE: 100-277VAC OUTPUTVOLTAGE:90-150VDC/180-260VDC

*ELECTRICALPERFORMANCE PARAMETERS:THD<10%/PF>0.95

*SURGE PROTECTION GRADE:6/10KV(<75W: 4/6KV)

*EFFICIENCY: 90%~95.5% IP GRADE:IP67

*PROTECTIONS:INPUT UVP.OUTPUT SCP/OVP/OLP/OTP

*CERTIFICATIONS: ENEC/CE/CB/CCC (C VERSION IS COMPLIANT WITH THE NEW ERP STANDARD)

*5 YEARS WARRANTY

Inquire Now Next Product

Description

SERIES	MODEL NO	POWER	INPUT	OUTPUT	CURRENT	THD	PF	SURGE	SIZE	WARRANTY
SERIES	MODEL NO	POWER	INPUT	OUTPUT	CURRENT	THD	PF	SURGE	SIZE	WARRANTY
HVS SERIES	HVS-30W-150A	30W	100-277V	90-150V	150-300mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-30W-260A	30W	100-277V	180-260V	70-150mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-50W-150A	50W	100-277V	90-150V	250-500mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-50W-260A	50W	100-277V	180-260V	120-250mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-75W-150A	75W	100-277V	90-150V	270-750mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-75W-260A	75W	100-277V	180-260V	180-380mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-100W-150A	100W	100-277V	90-150V	500-1000mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-100W-260A	100W	100-277V	180-260V	250-500mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-120W-150A	120W	100-277V	90-150V	600-1200mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-120W-260A	120W	100-277V	180-260V	300-600mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-150W-150A	150W	100-277V	90-150V	750-1500mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-150W-260A	150W	100-277V	180-260V	400-750mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-200W-150A	200W	100-277V	90-150V	1000-2000mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-200W-260A	200W	100-277V	180-260V	550-1050mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-240W-150A	240W	100-277V	90-150V	1200-2400mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-240W-260A	240W	100-277V	180-260V	7500-1250mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-320W-150A	320W	100-277V	90-150V	1600-3200mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	2146837mm	5 YEARS
	HVS-320W-260A	320W	100-277V	180-260V	750-1250mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	2146837mm	5 YEARS
HVS DIMMABLE SERIES	HVS-30W-150B	30W	100-277V	90-150V	150-300mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-30W-260B	30W	100-277V	180-260V	70-150mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-50W-150B	50W	100-277V	90-150V	250-500mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-50W-260B	50W	100-277V	180-260V	120-250mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1095632mm	5 YEARS
	HVS-75W-150B	75W	100-277V	90-150V	270-750mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-75W-260B	75W	100-277V	180-260V	180-380mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-100W-150B	100W	100-277V	90-150V	500-1000mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-100W-260B	100W	100-277V	180-260V	250-500mA	＜10%	＞0.95	L-N:4KV,L/N-E:6KV	1595632mm	5 YEARS
	HVS-120W-150B	120W	100-277V	90-150V	600-1200mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-120W-260B	120W	100-277V	180-260V	300-600mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-150W-150B	150W	100-277V	90-150V	750-1500mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-150W-260B	150W	100-277V	180-260V	400-750mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1625632mm	5 YEARS
	HVS-200W-150B	200W	100-277V	90-150V	1000-2000mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-200W-260B	200W	100-277V	180-260V	550-1050mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-240W-150B	240W	100-277V	90-150V	1200-2400mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-240W-260B	240W	100-277V	180-260V	7500-1250mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	1796837mm	5 YEARS
	HVS-320W-150B	320W	100-277V	90-150V	1600-3200mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	2146837mm	5 YEARS
	HVS-320W-260B	320W	100-277V	180-260V	750-1250mA	＜10%	＞0.95	L-N:6KV,L/N-E:10KV	2146837mm	5 YEARS
