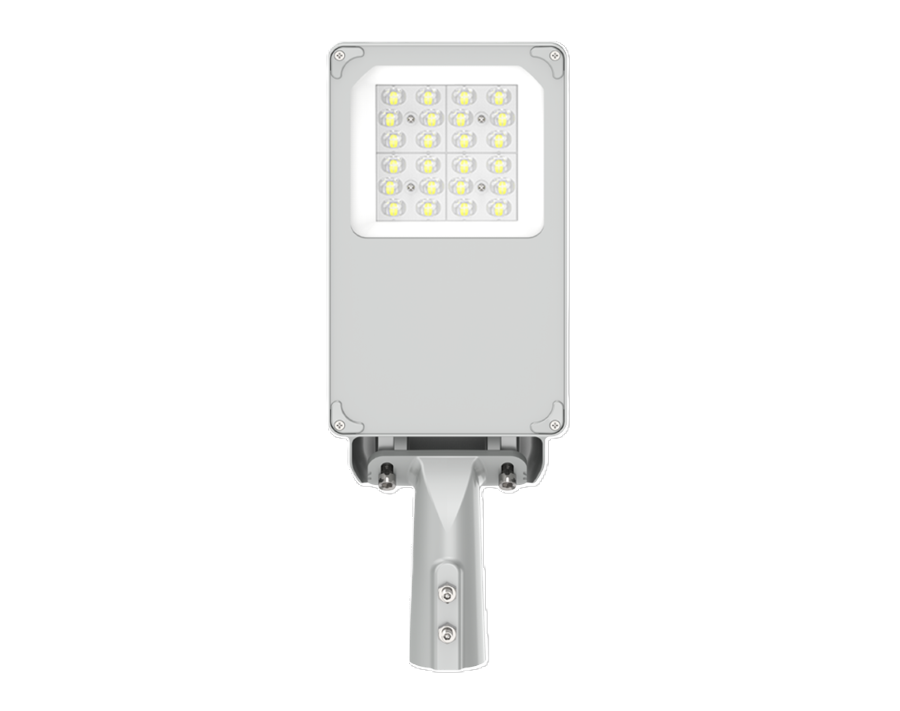

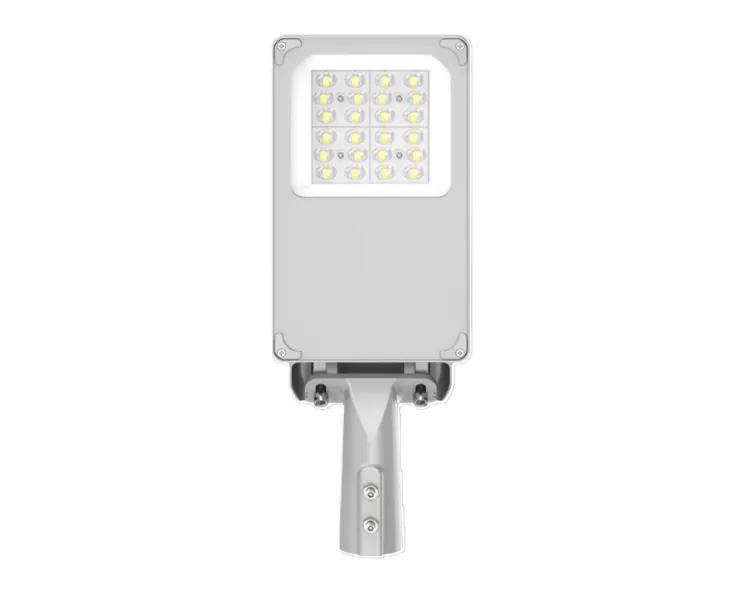

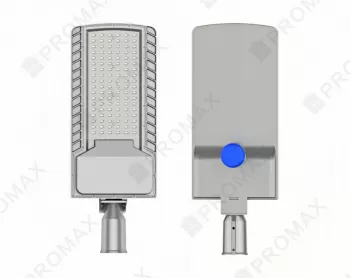

Street Light
Street Light
Patent private mould, integrated die-casting AL.
High efficiency, 170-200lm/w available.
Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.
0-10V dimming/time control/light sensor/IOT control available.
Flat honeycomb design, good heat dissipation.
Angle of mounting shaft can be installed and adjusted 90/180°.
Gradienter design: easy for horizontal installation.
IP66
| SIZE(MM) | POWER | LED QTY | LUMEN | DRIVER | NET WEIGHT | WARRANTY | REMARK |
| 463*173*110 | 40W | EMC5050*32 PCS | 170LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 2.54KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 463*173*110 | 50W | EMC5050*32 PCS | 170LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 2.54KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 570*200*110 | 60W | EMC5050*48 PCS | 190LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 3.30KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 570*200*110 | 75W | EMC5050*48 PCS | 190LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 3.30KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 611*240*111 | 100W | EMC5050*72 PCS | 190LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 4.20KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 611*240*111 | 120W | EMC5050*72 PCS | 190LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 4.20KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 680*260*111 | 150W | EMC5050*96PCS | 190LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 5.00KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 680*260*111 | 180W | EMC5050*96 PCS | 200LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 5.00KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 693*300*111 | 200W | EMC5050*128 PCS | 200LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 5.90KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
| 693*300*111 | 240W | EMC5050*128 PCS | 200LM/W | MEANWELL,SOSEN, DONE, SUNCOM OPTIONAL | 5.90KG | 5 YEARS | DIMMABLE, PHOTOCELL OPTIONAL |
